Product Support Information

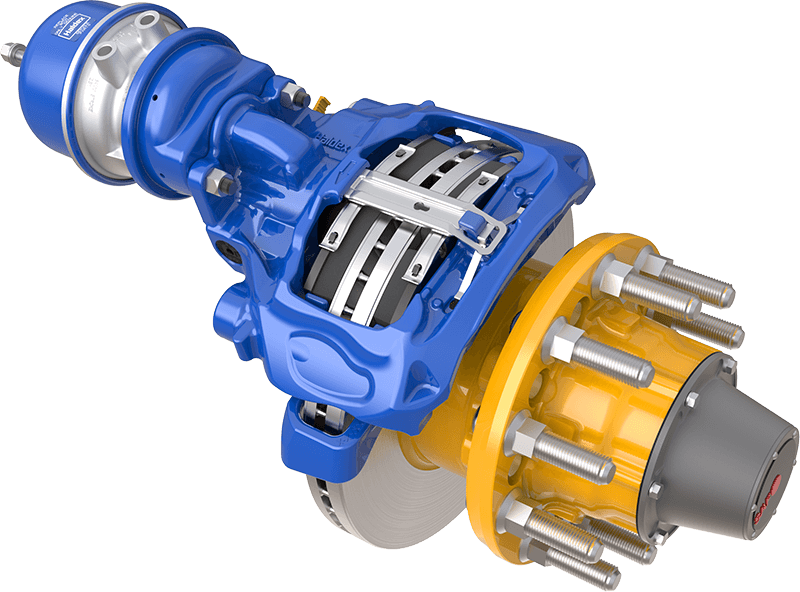

Haldex ModulT® DBT22LT GEN II
Trailer Air Disc Brake Package
Proven, lightweight single piston technology with breakthrough braking performance, simplified maintenance, and durable long-life design.
The Haldex ModulT Caliper is a direct replacement for the SAF-HOLLAND SK7 Caliper.
ModulT Caliper Part Numbers: 51830062 (L) | 51830063 (R)

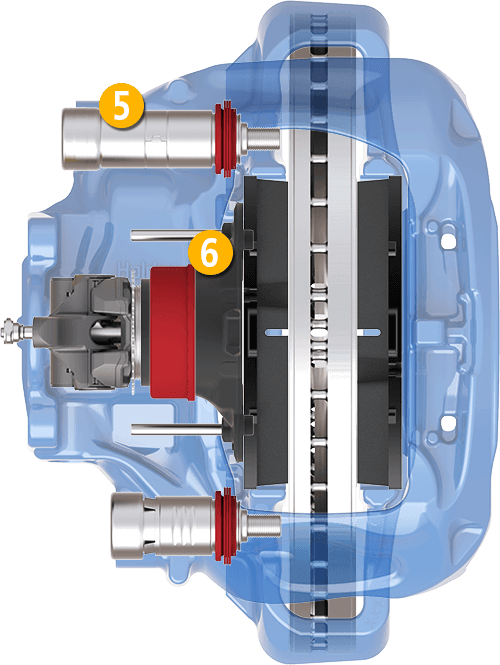

ModulT® DBT22LT GEN II Features
Performance you can trust.
The DBT22LT GEN II single piston ADB Caliper is designed with industry leading technologies that surpass the competitive industry design offerings.

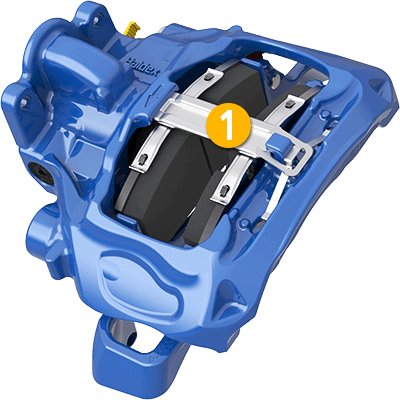

- Boltless Brake Pad Retainer Bar: simplifies maintenance and requires no extra tools for quick and easy brake pad replacement.
- Clearance Sensing, One-Way Clutch Mechanism Brake Adjuster Technology: proven Haldex ABA technology provides reliable, precision adjustment ensuring maximum braking output performance throughout the life of the brake pads.
- Single Piston with Elongated Inverted Bellows Seal Design: protects adjustment mechanism from heat and road debris providing an enhanced functionality life.
- Patented Spindle Adjustment Shaft Seal: optimal seal design with 10mm O-ring shaft seal eliminates water intrusion into the adjustment mechanism.

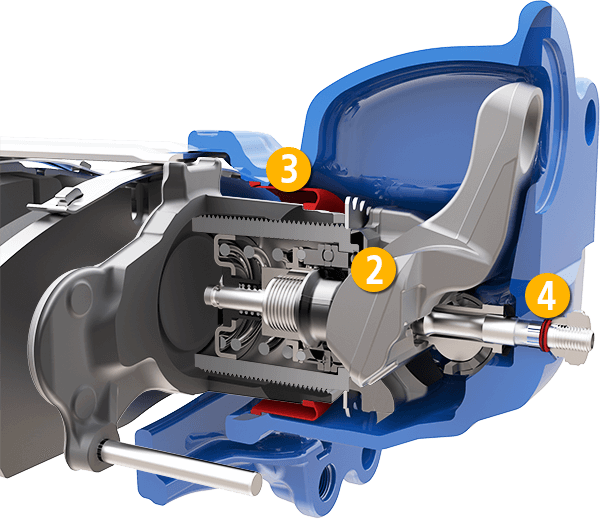

DBT22LT GEN II Clearance Sensing, One-Way Clutch Adjustment Mechanism
Features the same proven and trusted technology found in HALDEX automatic brake adjusters.
- Lube-Free, Stainless Steel Slide Pins: include Teflon® coated steel bushings with dual lip seals and cap seals to eliminate the potential for corrosion.
ModulT®
No-Lube high-grade stainless steel slide pin with dual lip seals and cap seal. (after 500K miles)

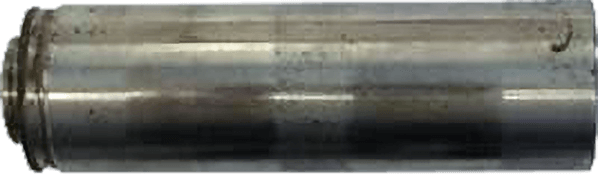

Model "B"

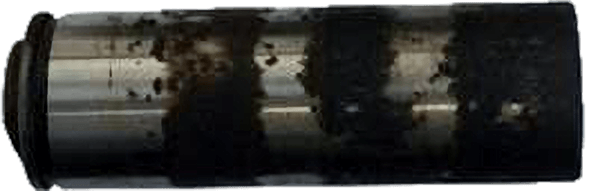

Lubricated slide pin with failed seals causing corrosion leading to seized pins. (after 500k miles)
- ModulT® Profile Comparison - 145% Larger Than Nearest Competitor: competitive comparison shows the size superiority of the ModulT® plate/piston design versus other single piston designs.
ModulT®
Model "M"
Model "W"
Haldex - ModulT® Overview

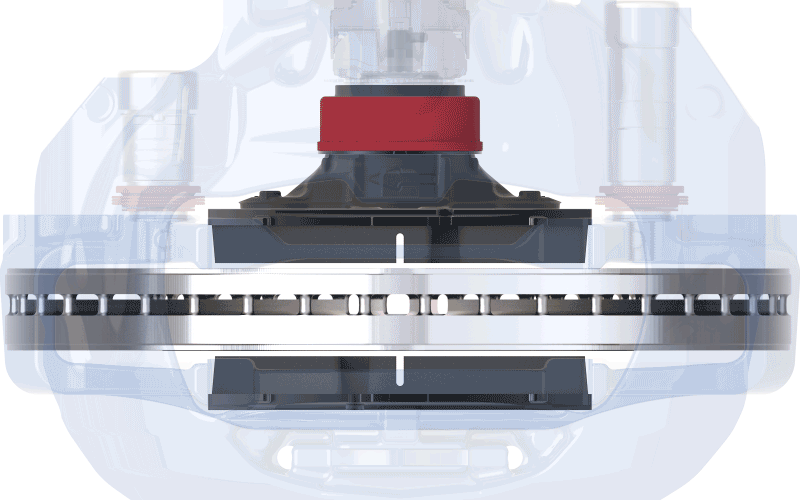

Thrust Plate / Piston Design
ModulT® Robust One-Piece Integrated Thrust Plate / Piston Design
Assures even pad wear, and when combined with the proven brake adjuster mechanism supplies consistent, maximum brake output force throughout the life of the brake pads.

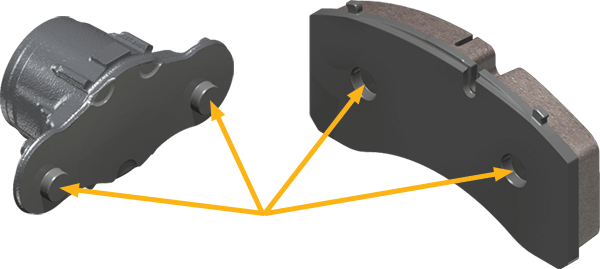

Peg to dimple interface.
Piston Thrust Plate and Pad Backing Plate Interface Design
Pegs on the thrust plate interface with dimples on the brake pad backing plate creating a stable connection for proper pad alignment and brake force vibration resistance.
Common inner and outer brake pad design also simplifies replacement.

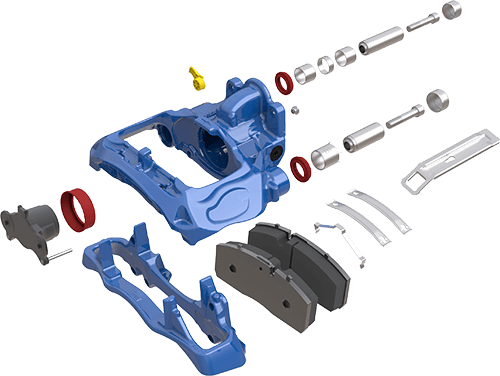

Designed for Ease of Service
Fewer Components for Simplified Maintenance
The simplified design of the DBT22LT single piston caliper features fewer parts than twin piston calipers, making maintenance easier. Common inner and outer brake pad design simplifies replacement.
Wheels don’t need to be removed to visually check wear.

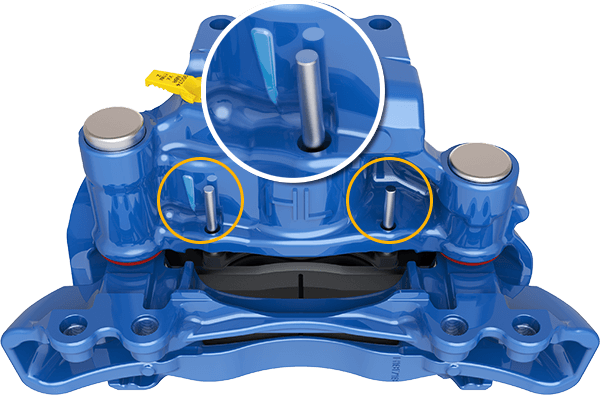

Dual Pad Wear Indicator Gauge Pins
The DBT22LT GEN II features two easy to access pad wear indicator pins. One located near the leading slide pin and a second pin near the trailing slide pin.
Competitive designs include only one indicator pin or require a complicated measuring process to determine pad wear.
Optimized weight saving single piston design.
The DBT22LT GEN II is brilliantly designed with features that simplify maintenance, lower operating cost and keep you on the road.
- Robust performance in an optimized, lightweight truck brake.
- Brake force supports up to 23,000 lb. gross axle weight rating.
- Equipped with HALDEX LifeSeal+ Spring Brake Actuators.
- Compatible with industry standard ConMet Pre-Set PlusTM hub and rotor assembly.
Proven Technology
ModulT® DBT22LT GEN II Support

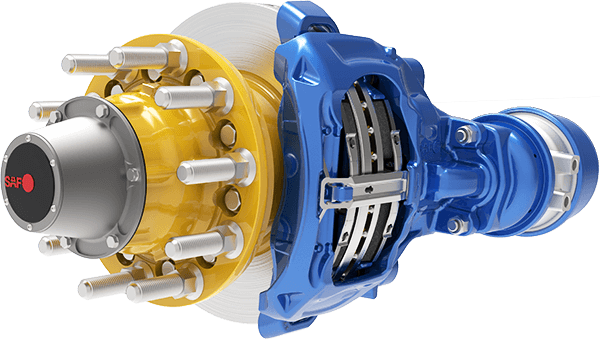

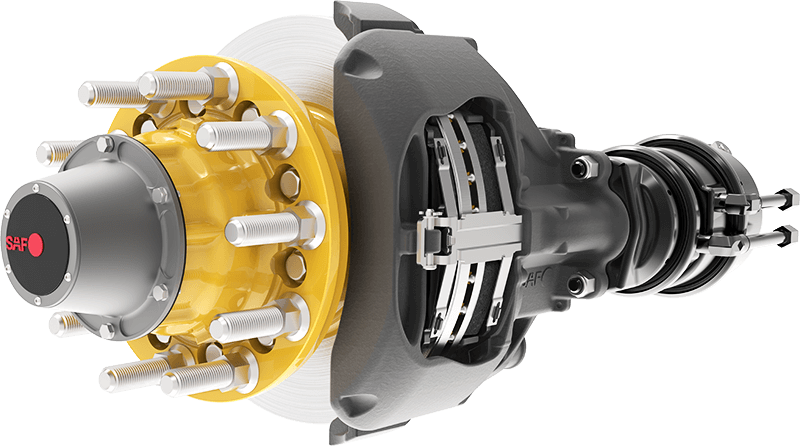

SAF P89 Air Disc Brakes
SAF is recognized as a global leader in air disc brake technology with millions of disc brake axles in service worldwide since 1996.
Leveraging its global network of engineering, testing and manufacturing expertise, SAF has developed a family of disc brake systems to meet the unique requirements of the North American trailer market.
SAF P89 Advantages
Reduced Maintenance
- Significantly Longer Brake Pad Life for Extended Service Intervals – Some fleets have reported a substantial increase in miles between brake jobs.
- Replacing Disc Brake Pads Takes Less Than Half the Time – When compared to replacing conventional drum brake linings.
- The Automatic Brake Adjustment Mechanism – Built into the disc brake caliper. This means there are no slack adjusters to maintain and brake stroke to control.
- Lower Risk for Out-of-Service Adjustment Violations – When compared to drum brakes
Designed to Accept Industry Standard Wear Parts. - Five-Year Parts and Labor Warranty.
Braking Performance
Reduced Brake Fade
Traditional brake drums expand away from the brake lining during hard braking, resulting in brake fade. Disc brake rotors expand toward the brake pads during similar braking events, essentially eliminating mechanical brake fade.
Shorter Stopping Distances
When compared to drum brake systems.
Enhanced Safety is Reason Enough

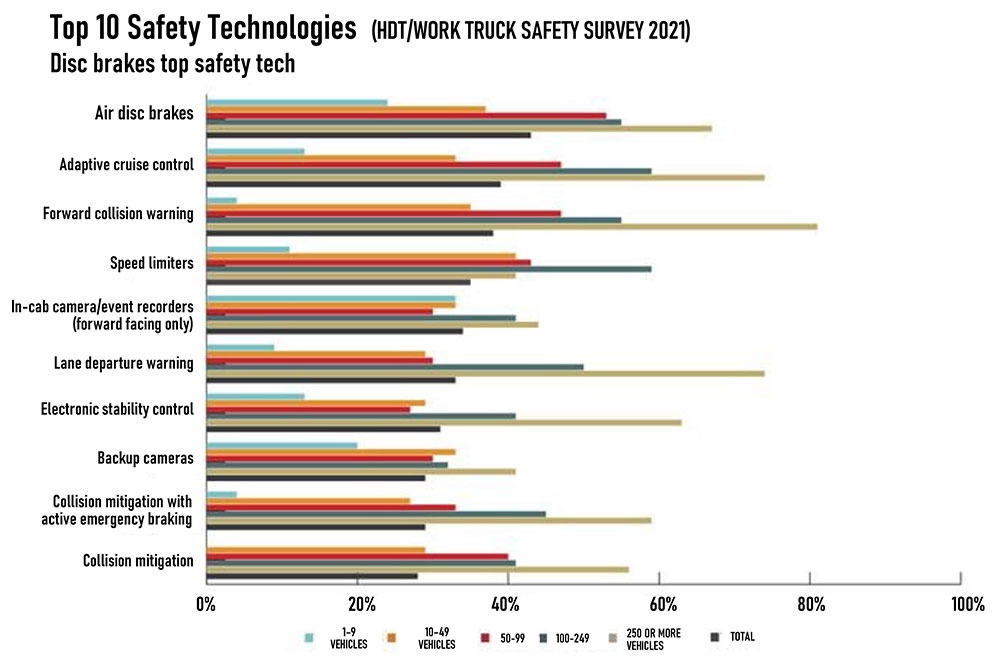

Fleets recognize the safety advantages of air disc brakes and are making it their number one priority as evidenced in a recent truck safety survey.
SAF P89 disc brakes will assure the stopping performance you expect, after all SAF is the global leader in trailer air disc brakes.
Learn more at Trucking Info: https://www.truckinginfo.com/10150062/2021-hdt-fact-book-safety-regulatory-issues-top-of-mind-for-fleets
Designed for the North American Market
- SAF SBS 2220-K0 Dual Piston Caliper Design – Increases braking performance and pad life, uses larger brake pads and provides more even pad wear when compared to a single piston design.
- Dual Sealed Slide Pins – Maintenance requirements simplified by eliminating the need for lubrication.
- Premium Brake Chamber – All steel design with full immersion e-coating of housing and internal components for long life corrosion protection.
- Semi-Metallic Disc Brake Pads – 20% larger to provide the optimum balance of stopping power and long wear life to extend service intervals.
- Heavy-Duty Vented Rotor – large internal cooling channels and 30% more wearable rotor surface than comparable designs. More evenly dissipates heat to reduce rotor distortion for a long service life.
- Heavy-Duty Parallel Spindle Wheel End – robust spindle design with large 89mm inner and outer wheel bearings for enhanced performance, reliability and unmatched durability.
SAF P89 Features
All the Benefits You Expect From the World’s Leading Trailer Axle Disc Brake Supplier, at a Price Point That Makes Sense for Commercial Fleets of All Sizes.
FEATURING:
- Heavy-Duty Vented Rotor
- Proven Knorr Caliper
- Parallel or Taper Spindle
- 5-Year Warranty
SAF P89 Support
Warranty Details
| P89 Disc Brake | Standard or Moderate Duty | |
|---|---|---|
| Caliper | Parts / Labor | 5 Years / 5 Years |
| Brake Pads | Parts / Labor | 5 Years / 5 Years |
| Rotor | Parts / Labor | 5 Years / 5 Years |
| Brake Chamber | Parts / Labor | 5 Years / 5 Years |
| Hub | Parts / Labor | 5 Years / 5 Years |
| Bearings | Parts / Labor | 5 Years / 5 Years |
| Wheel Seals, Hub Caps & Axle Nuts | Parts / Labor | 5 Years / 5 Years |
| Other | Parts / Labor | 5 Years / 5 Years |
XTRA Lease - SAF P89 Inspection Procedures

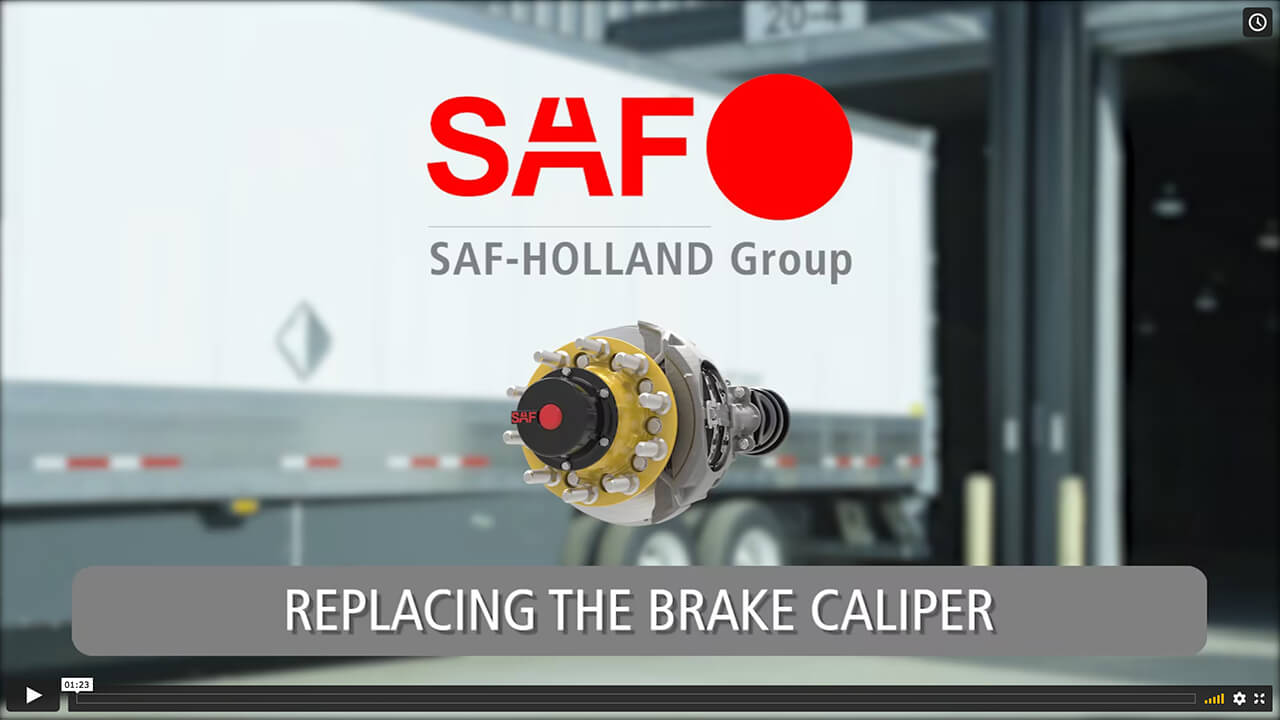

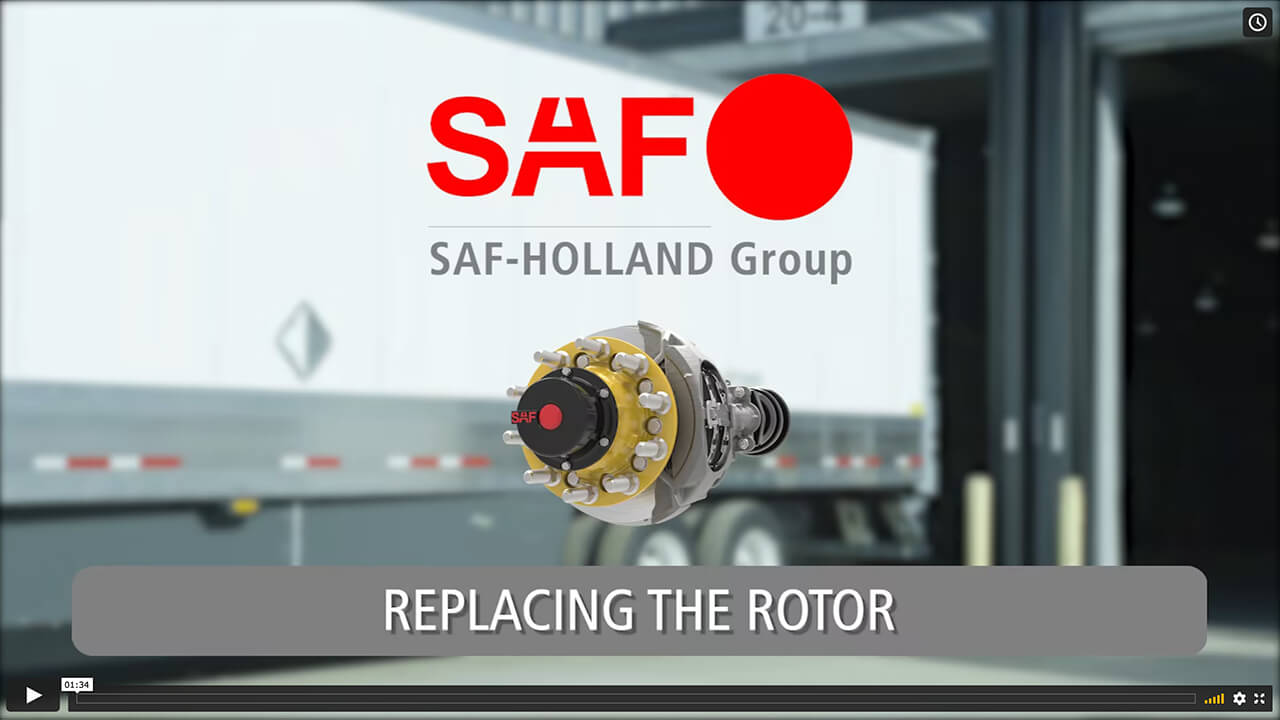

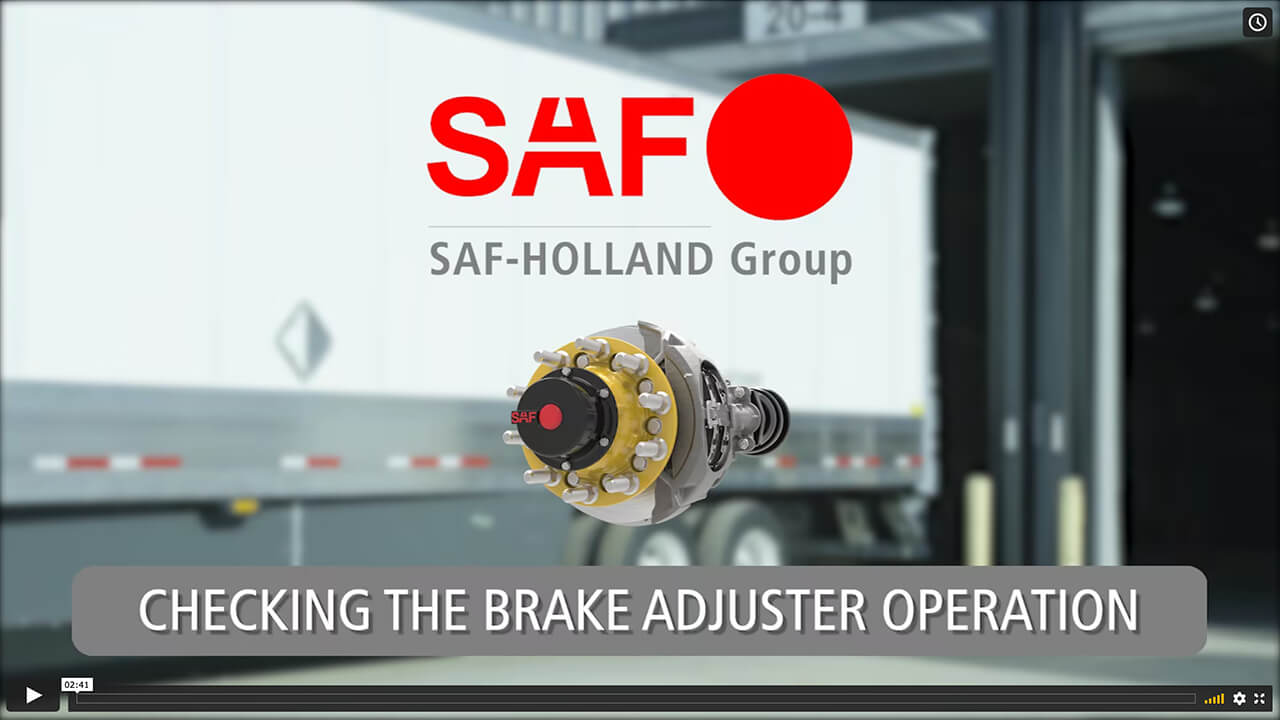

SAF P89 Service Videos

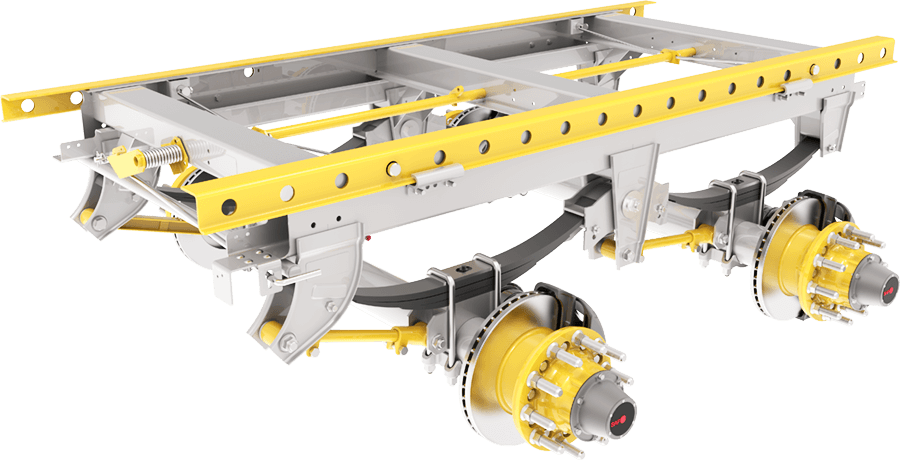

SAF ULX40
Trailer Slider Suspension System
SAF ULX40 Features
Lightweight with Quality Ride Performance
The lightweight SAF ULX40 allows more payload while delivering the quality and handling control required without the complexity of air-ride.
Independent testing of road conditions and impact on cargo shows that, along with today’s improved packaging material and pallet configurations, the mechanical suspension system performs to the ride quality standards expected by North American on-highway fleets.
Additional ULX40 Features Include:

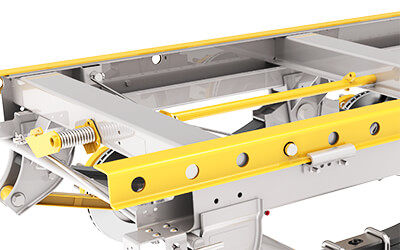

Slider Sub-Frame
Manufactured with 80KSI yield steel and strategically located crossmembers to resist racking and buckling. Models available to accommodate 1-3⁄8˝ and 1-5⁄8˝ pins.
SAF X-Series 5.75" Diameter Axle
The optimized design of the 5.75˝ axle brings a 20 lb. weight savings per tandem, and is over 30% more rigid when compared to the standard 5˝ diameter axle.

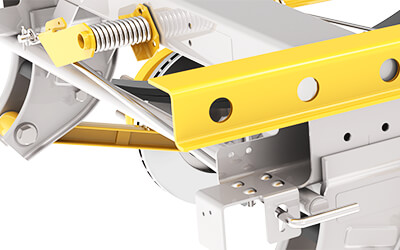

Qwik Release® Pin Pull
With 20% less pulling effort than competitive models, one person can easily reposition the slider - also eliminates bound-up pin problems.
Black Armour® Metal Treatment
Treatment process, unlike paint or powder coating, means the ultimate in corrosion protection with no rust creep. Click to Learn More About Black Armour®
SAF P89 Air Disc Brakes
Choose the proven design and genuine value of the P89 air disc brake with Knorr calipers and actuators.
Click to Learn More About SAF P89 Air Disc Brakes
SAF ULX40 Support
Warranty Details
| ULX40 Components | Standard Duty Extended Warranty (Durasystem) | |
|---|---|---|
| Major Components: Main structural components including slider box, hangers, etc. | Parts / Labor | 10 Years / 10 Years |
| SAF-HOLLAND Supplied Axle Beam, Welded Bracketry and Axle Connections | Parts / Labor | 10 Years / 10 Years |
| Steel Spring | Parts / Labor | 5 Years / 5 Years |
SAF ULX40 Literature
Black Armour™
The Most Advanced Suspension Corrosion Protection Available!
Black Armour™
Standard on all SAF Suspensions
Protect your fleet and your bottom line when you spec an SAF suspension system that comes standard with the exclusive Black Armour™ corrosion protection treatment.
This advanced corrosion protection gives you the ultimate defense against rust and corrosion.
… Only from SAF-HOLLAND
- Factory applied on ALL SAF suspensions.
- Weighs and costs significantly less than hot-dip galvanization.
- Can be used as a finish coat or a primer.
A Unique Chemical Treatment – Not Just Another Paint or Coating!
Black Armour™ metal treatment is the perfect foundation for fleets that want to add their own topcoat. It can act either as a topcoat, or a primer for nearly any topcoat, all without additional sanding or prep work.
Black Armour™ is a water-based zinc-free coating with 72% fewer solvents than traditional coatings and fewer VOCs!

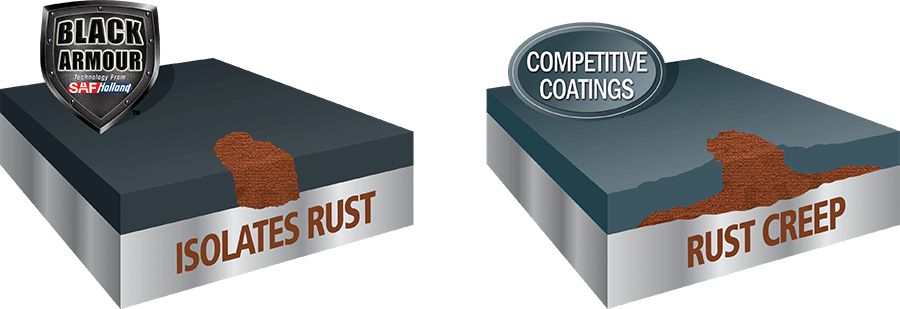

Black Armour™ is not just a paint – it grafts with metal to form a protective skin that will not shrink or peel, and is impervious to moisture and today’s harsh, anti-icing agents. Unlike paints and powder-coats, Black Armour™ prevents rust creep should chipping occur.
